Introduction to metal analysis device

       Unique’S OES

Unique’S OES Metal Analyzer is an advanced quantometer for elemental and chemical composition analysis of metals. Designed with Spark technology, it is an ideal choice for quality control in the steel, aluminum, foundry, ferroalloy, refractory and mining industries.

Unique’S OES, with its ability to detect major elements and trace alloys, allows users to obtain accurate, fast and reliable results.

Technical specifications of Unique’S metal analyzer

• Element detection in the wavelength range of 140-870nm
  Optical system equipped with high-resolution CMOS detector
  Controlled vacuum system in the spectrometer environment 6-10Pa
  Digital spark power supply with frequency 100-800Hz and maximum current 80A (CCS source with current control capability)
  Adjustable holder for samples of different sizes
• Special kit for small and wire samples

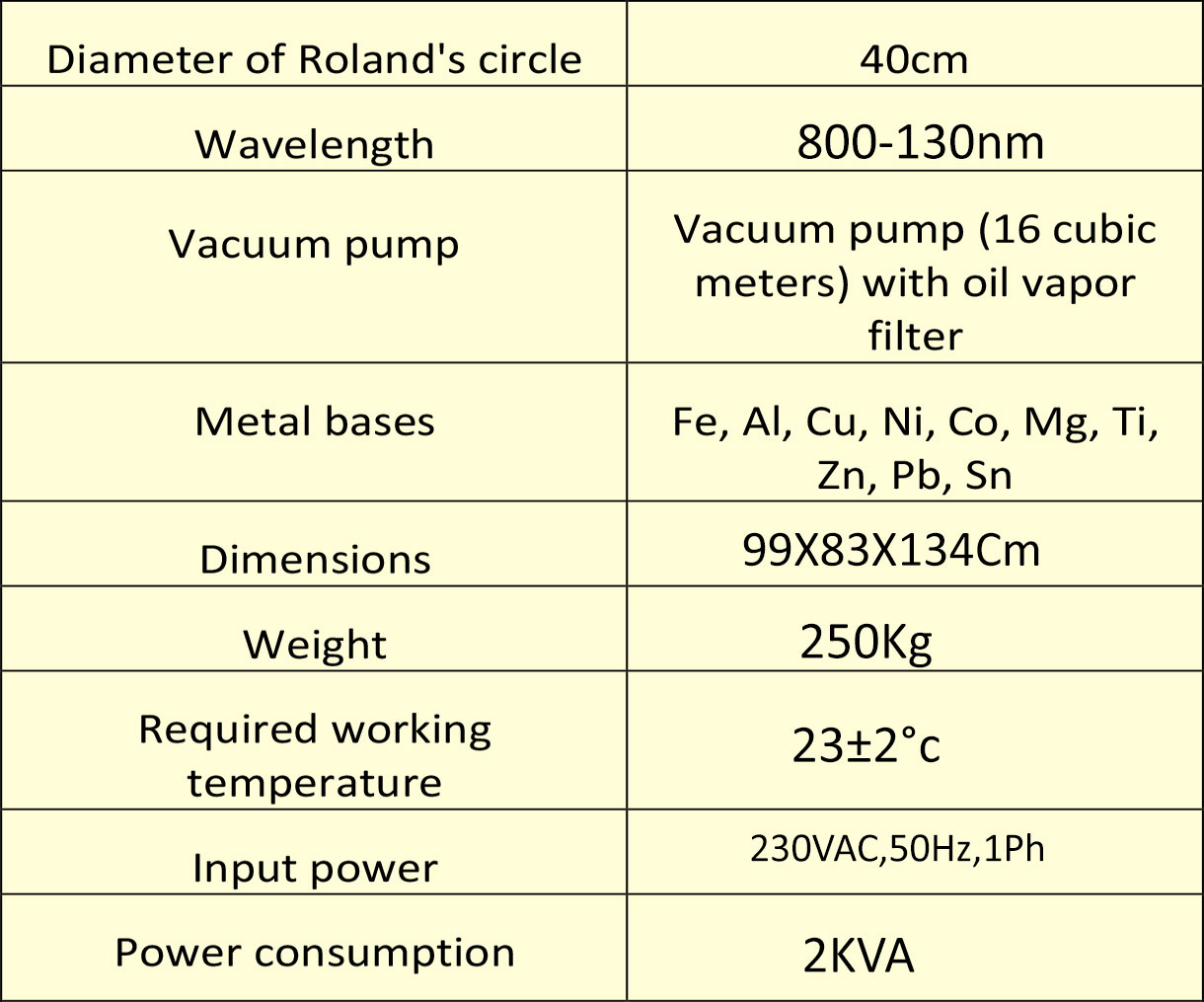

Technical specifications of Unique’S metal analyzer

Unique’S Metal Analysis Device Application

This device is used in the following industries:

Steel and foundry industries
Aluminum and alloy industries
Ferroalloy and refractory companies

Mining industries and research laboratories

• Benefits of Unique’S Metal Analyzer Software

Software installation on Windows 7, 10
Easy access to different sections of the software and increase of alloy groups related to working conditions
Performing recalibration with only one sample
Very accurate standardization of analysis based on standard sample using Type Standard method
Real-time control and display of parameters related to spectrometer and electronic boards and vacuum value (STATUS)
Easy access to analysis results, saving and converting to EXCEL and PDF formats
Has different levels of access to the software
Possibility of importing grade tables (steel key, etc.) for different bases (…,Fe,Al,Cu)
